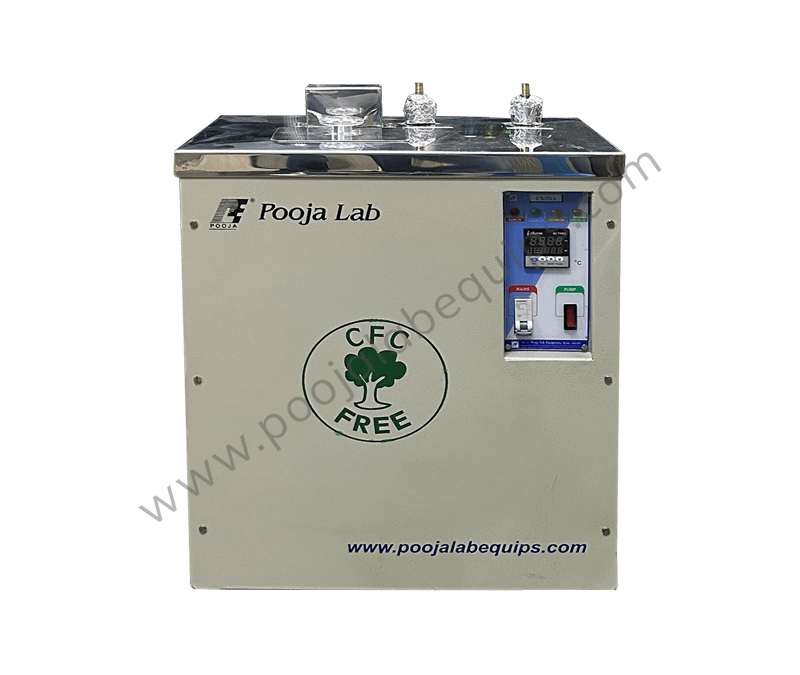

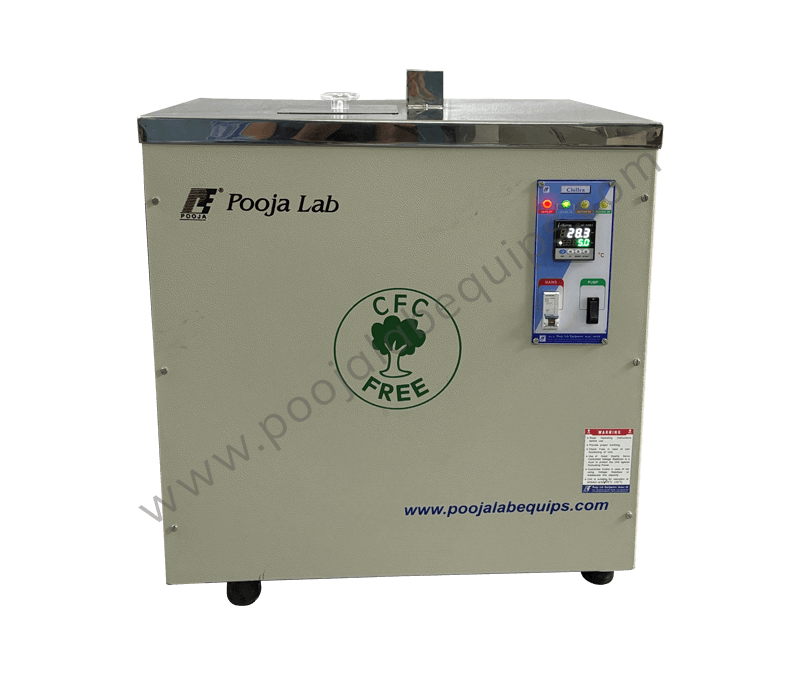

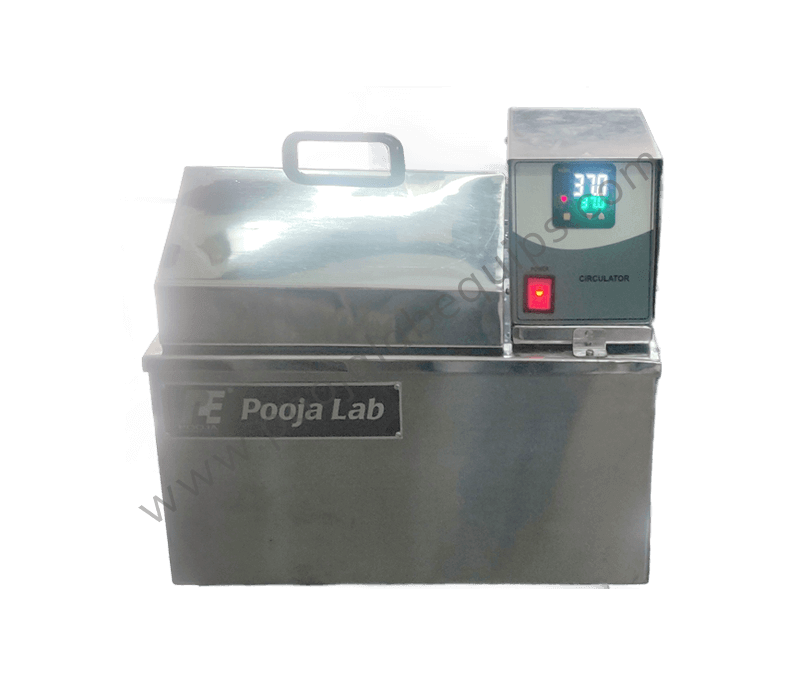

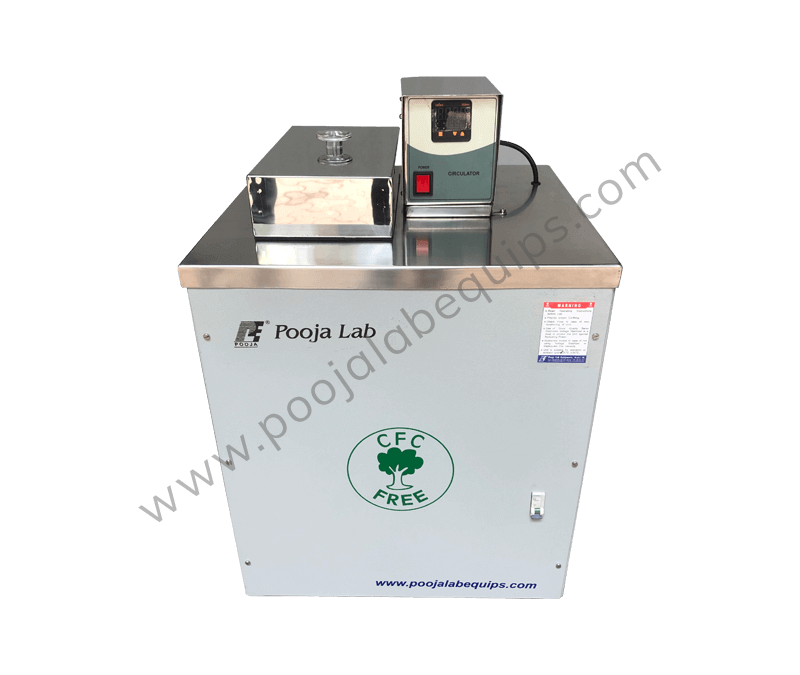

PLE-115 Cryostat Bath

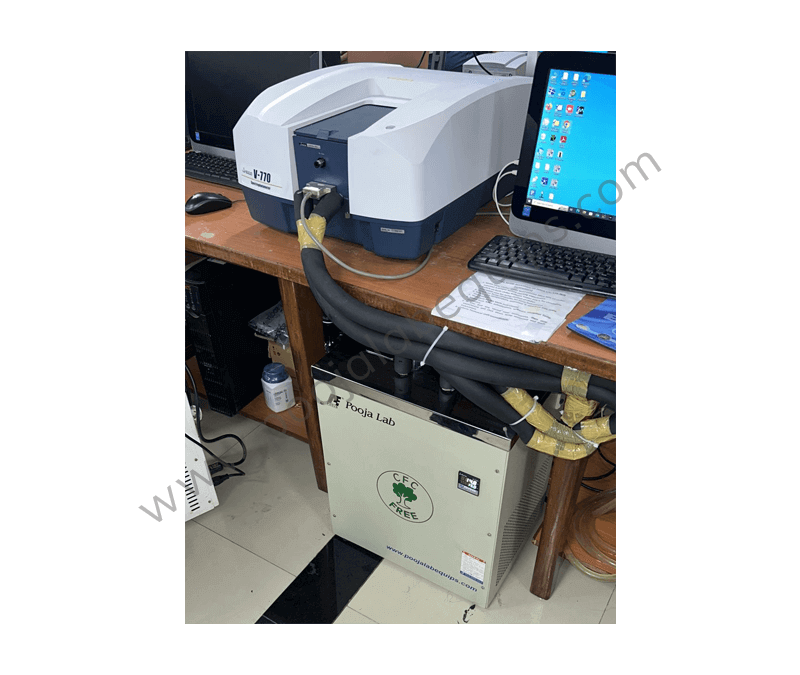

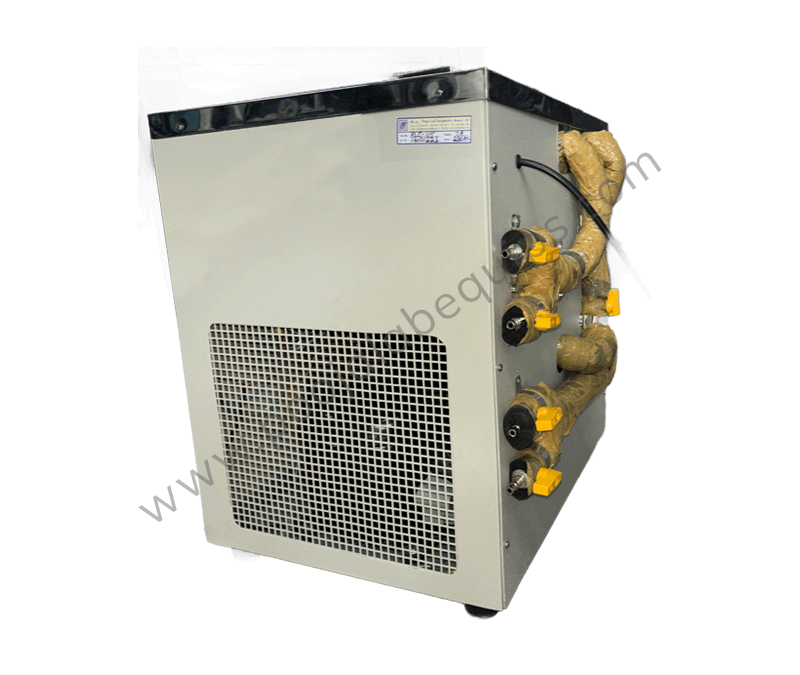

Pooja Lab's cryostat bath are table top type designed for maximum space saving but require better height clearance available in two versions i.e. non-GMP and GMP choose from different: temperature ranges suitable for various applications in Pharmaceuticals, Organic chemistry, cryo-microbiology applications, plasma thawing and to connect rotary evaporator etc. It consists of sealed refrigeration technology, digital control system, external circulation pump that will circulate 5 ltrs. Per minute at one meter height. MOC in non GMP version is bath and top is SS-304 and mild steel with powder paint finished outside. In GMP version bath is SS-316 and outside is SS-304. In GMP version the cabinet has stainless steel 316 inside and stainless steel 304 outside.
| Model No. | Bath Capacity | Temperature Range | Temperature Accuracy | External dimensions in cms |
|---|---|---|---|---|
| CB-01 | 08 Litres | 0 to 60°C | ±1°C | 55 x 40 x 72 |
| CB-02 | 15 Litres | 0 to 60°C | ±1°C | 55 x 45 x 72 |
| CB-03 | 08 Litres | -10 to 60°C | ±1°C | 55 x 40 x 72 |
| CB-04 | 15 Litres | -10 to 60°C | ±1°C | 55 x 45 x 72 |
| CB-05 | 08 Litres | -20 to 60°C | ±1°C | 55 x 45 x 75 |
| CB-06 | 15 Litres | -20 to 60°C | ±1°C | 55 x 50 x 75 |
| CB-07 | 08 Litres | -35 to 60°C | ±1°C | 60 x 47 x 80 |
| CB-08 | 15 Litres | -35 to 60°C | ±1°C | 60 x 55 x 80 |
Pre-installation requirements:
- Stabilized 230V 50Hz AC single-phase 15 amps power supply with MCB and proper earthing within the radius of one meter from the installation.
- To be installed in an air-condition or in a cross ventilated, dust free and clean environment with free space around. Room temperature should be below 30°C)
- Zero level flooring and Floor level drainage within the radius of one meter from the installation.
