PLE-104 Ice Flaker
Pooja Lab's Ice Flakers consistently produces clear,hard, slow melting uniform quality flake ice (crushed ice), steadily and efficiently. Byusing environment friendly refrigerant, the ice flaker is a dependable, time proven design that offers utmost reliability and performance .Further, Higher capacity indus trial cooling system is provided with hermitically sealed super performance and trouble free compressor coupled with air-cooled condenser and direct expansion.
Our systems are exclusively patented thus making it trust worthy and giving you high quality fully indigenously developed components and sophisticated manufacturing technology; Ice Flaker with air-cooled condensing unit.
Ice Flaker Sysem:
- MOC in non-GMP bin and exterior are corrosion resistant SS-304 and in GMP bin is SS-316 and exterior is SS-304 mat finish.
- Built-in well-insulated bin keeps the ice for longer period.
- A metallic / non-metallic door provided at the top of the bin for easy removal of ice.
- Automatic cut-off takes place when the bin is full and starts again as soon as level comes down.
- Guaranteed Ice production at 20°C Air and 15°C DM water temperature.
- All frame work will be MS duly painted.
| Model No. | Production | Bin capacity | External dime inch/mm |
|---|---|---|---|

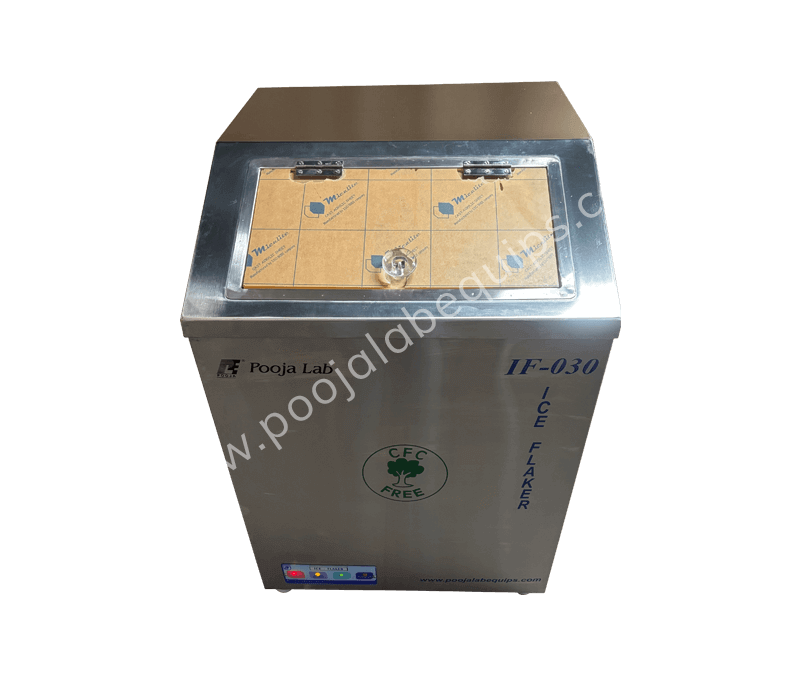

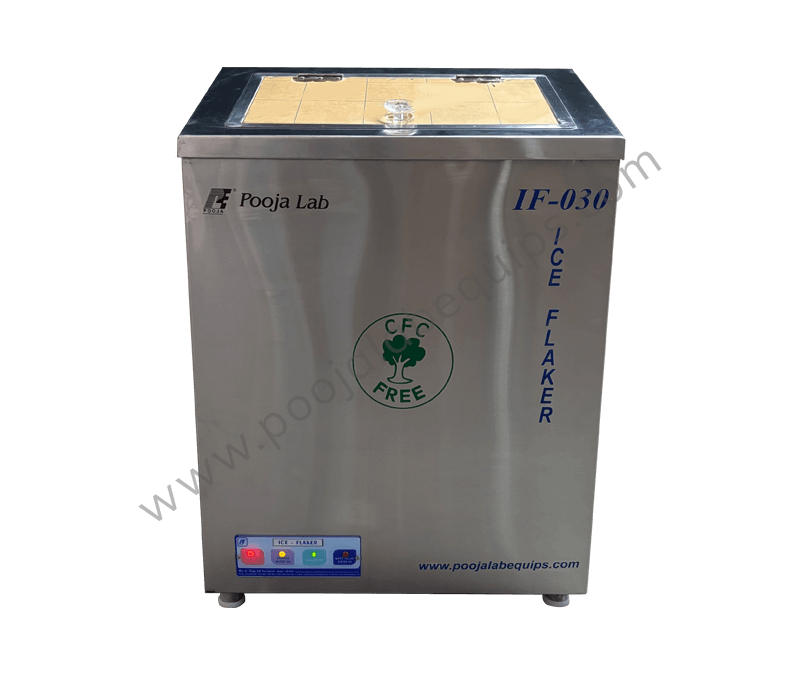

| IF-030 | 30 kg/24 hours | 20 kg approx | 24.00x 24.00 x 38.98 (610 x 610 x 990) |

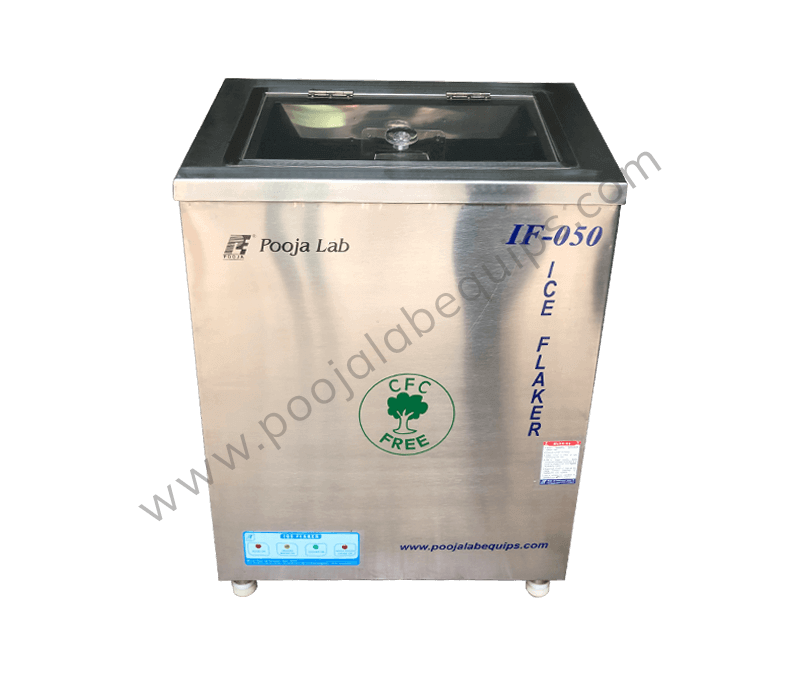

| IF-050 | 50 kg/24 hours | 20 kg approx | 24.00x 24.00 x 38.98 (610 x 610 x 990) |
| IF-060 | 60 kg/24 hours | 20 kg approx | 24.00x 24.00 x 38.98 (610 x 610 x 990) |
| IF-070 | 70 kg/24 hours | 20 kg approx | 24.00x 24.00 x 38.98 (610 x 610 x 990) |
| IF-090 | 90 kg/24 hours | 30 kg approx | 36.22x 24.00 x 38.98 (920 x 610 x 990) |
| IF-120 | 120 kg/24 hours | 40 kg approx | 36.22x 24.00 x 38.98 (920 x 610 x 990) |
Additional Safety System:

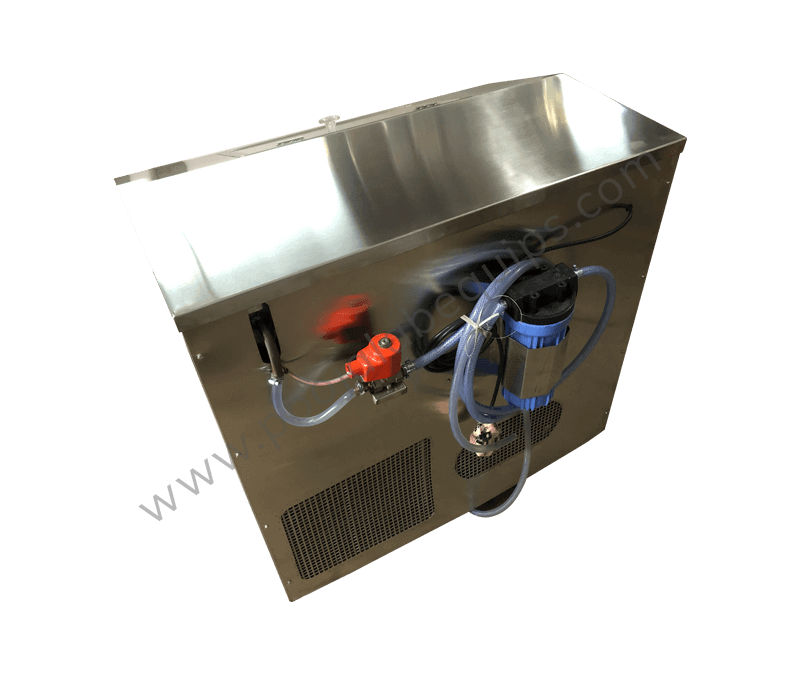

Ice Flaker is supplied with water filter and water failure protection device by considering that the unit will not RUN in-case of water supply fails and it starts automatically When the water supply resumes.
Pre-installation requirements:
- Stabilized 230V 50Hz AC single-phase 15 power supply with MCB and proper earthing within the radius of one meter from the installation.
- One feet free space around for installation.
- To be installed in an air-conditioned or in a cross ventilated, dust free and clean environment.
- Zero level flooring and Floor level drainage within the radius of one meter from the installation.
- Continuous DM or Distilled Water Supply line 1/2" BSP with nipple valve connection within the radius of one meter from the installation.
